Surveillance & Thermal Imaging Drones
We build surveillance UAVs in India for police, defence, border and industrial customers — airframes, flight controllers and ESCs designed in-house, integrated with day and thermal payloads. Every platform flies fully autonomous or manual missions, carries an encrypted point-to-point video link, and returns home automatically on low battery or loss of communications.
Platforms
OX650 — Long Endurance
- Size: 650 × 650 × 200 mm
- Endurance: 60–65 min
- Flight range: 15–20 km
- Live video: up to 15 km, Full HD 1920×1024
- Max speed: 80 km/h · Ceiling: 16,000 ft+
- Payload: 4K 8 MP, 6× zoom, 3-axis gimbal, 320° yaw; or day + 640×512 thermal

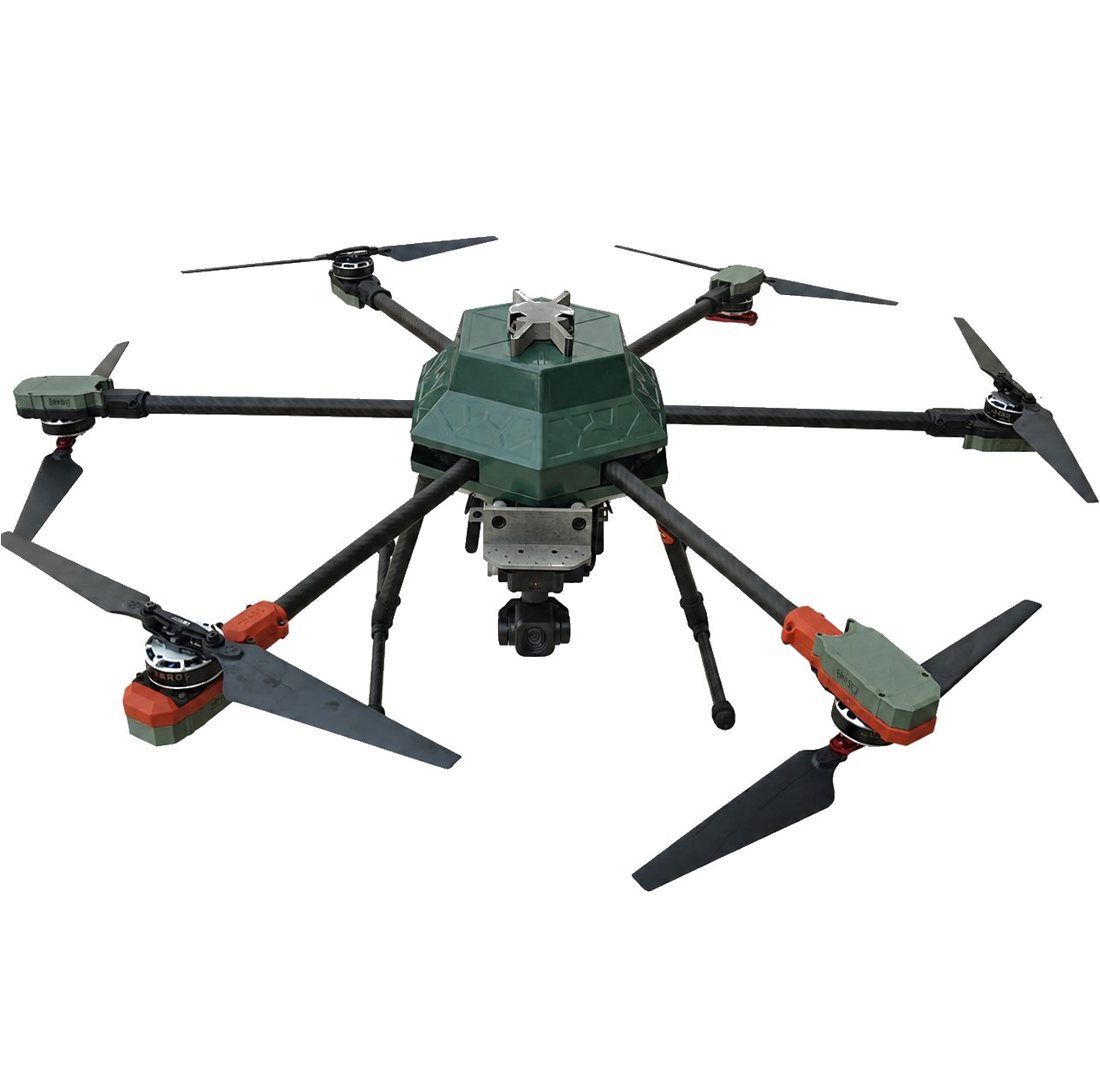

HX680 — Hexacopter
- Size: 680 × 680 × 200 mm
- Endurance: 30–55 min (battery dependent)
- Flight range: 5–15 km
- Live video: up to 6 km, Full HD 1920×1024
- Max speed: 80 km/h · Ceiling: 16,000 ft+
- Payload: 4K day, or day + 640×512 thermal

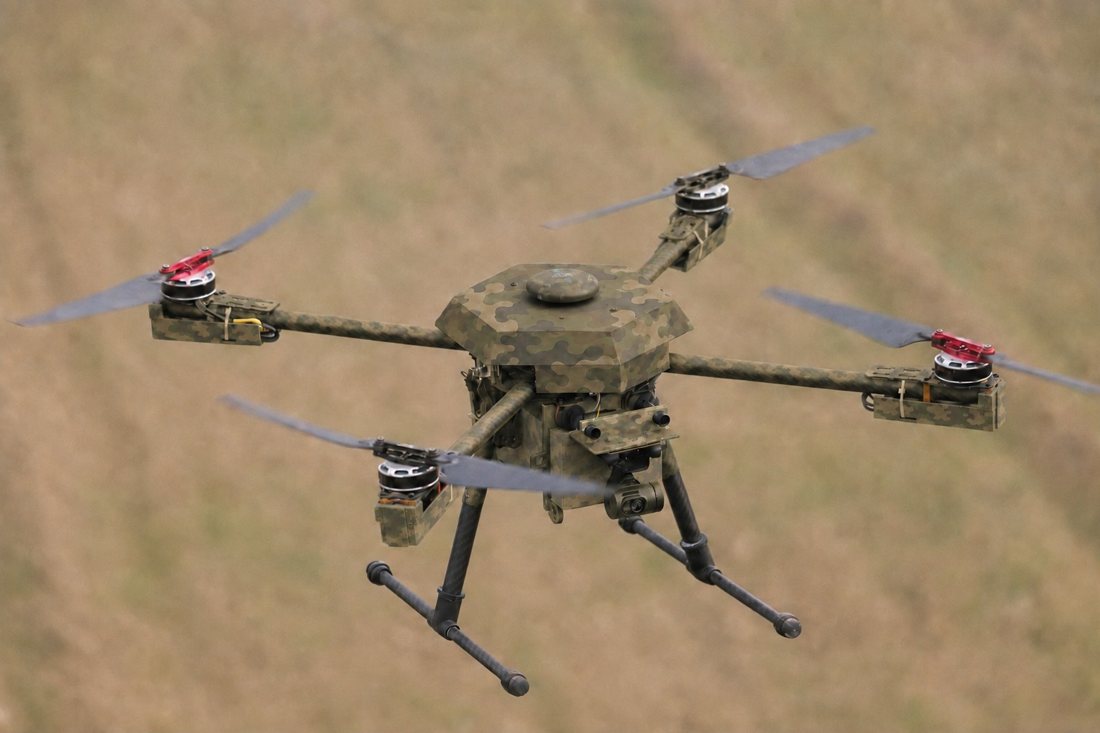

QX650 — Quadcopter
- Size: 650 × 650 × 200 mm
- Endurance: 30–55 min (battery dependent)
- Flight range: 5–15 km
- Live video: up to 6 km, Full HD 1920×1024
- Max speed: 80 km/h · Ceiling: 16,000 ft+
- Payload: 4K day, or day + 640×512 thermal
TI-SKY Thermal Variants
The HX680-TI-SKY and QX650-TI-SKY carry a day/night payload with onboard object tracking, for night patrol, search and rescue, and thermal inspection work.
- Thermal sensor: 384×288, f=7 mm, F1.0, FOV 24.8°×18.7°
- Visible camera: 2560×1440 photo and video
- RTSP stream: 1280×720
- Day/night payload with object tracking
- Larger 640×512 thermal available on the standard HX680, QX650 and OX650 payload options
Payload Options
- 4K HD photo & video with 6× digital zoom
- 4K HD photo & video with 10× optical zoom
- 4K HD photo & video with 30× optical zoom
- 4K 8 MP, 180× hybrid (30× optical), 640×512 thermal, laser range finder to 1200 m
- 2K HD photo & video with 384×288 thermal
Applications
Police & Law Enforcement
Crowd monitoring, night patrol, pursuit support and incident overwatch with thermal detection.
Border & Perimeter
Long-endurance patrol of borders and installation perimeters over an encrypted link.
Search & Rescue
Thermal search for people in low light, dense cover or disaster debris.
Industrial Inspection
Power lines, solar farms, refineries and towers — thermal anomalies spotted without shutdown.
Fire Services
Hotspot mapping and scene overwatch, alongside our fire-fighting UAV platform.
Survey & Mapping
Autonomous grid missions with 4K and zoom payloads for site documentation.
Common to Every Platform
- Fully autonomous and manual flight modes
- Encrypted point-to-point command and video link
- Low-battery and comms-loss return-to-launch
- Operating temperature: −10 to +50 °C
- Low noise signature; IP65 transport packing
- Two days of on-site training on handover; 24-hour service response record
Enquiries
Endurance and range figures depend on battery configuration and payload. Tell us the mission and we will specify the platform.
Ashwani Sihag — +91 98763 01824 | info@sihaginnovations.com
